Platelet Incubator
TI 0 / 1 / 2 / 3
- Specially designed for platelet storage
- Available in 4 device sizes
- Stainless steel case
- Low energy consumption due to interval control of cooling and heating
- Insulated interior
- Self-closing single doors withDouble insulating glass and magnetic seal
- Automatic stop of agitators and fans after opening a door

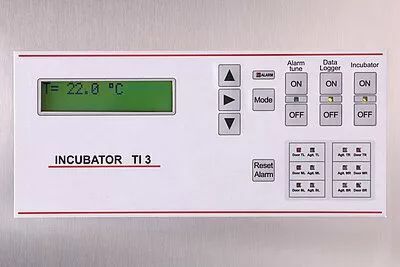

Refrigerator, CFC free - Microprocessor control for monitoring of temperature, doors and
agitator speed with alarm output visual/acoustic - External alarm output

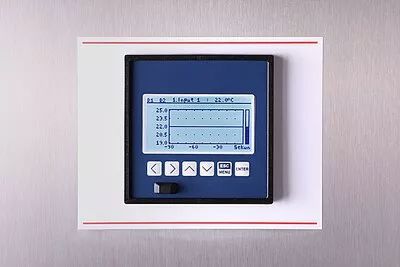

- Graphic data logger for recording the temperature with USB- connection for outsourcing the data (PC)
Spezifikationen:
| Modell | TI-0 | TI-1 | TI-2 | TI-3 |
| Order no: | 600.050 | 600.047 | 600.048 | 600.049 |
| External dimensions WxDxH in cm |
59,2 x 64,8 x 79,2 | 104 x 64,8 x 89,3 | 104,4 x 64,8 x 140,3 | 104,4 x 64,8 x 191,3 |
| Interior dimensions WxDxH in cm |
52,8 x 45 x 47,6 | 97,8 x 45 x 47,6 | 97,8 x 45 x 98,6 | 97,8 x 45 x 149,6 |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Roller feet | - | - | 4 | 4 |
| Adjustable feet | 4 | 4 | - | - |
| Doors with safety glass | 1 | 2 | 4 | 6 |
| Refrigerator CFC free | x | x | x | x |
| Data logger / USB stick | x | x | x | x |
| Alarm system | x | x | x | x |
| Data alar, output | x | x | x | x |
| Power supply | 230V AC +/- 10% 50-60Hz |
230V AC +/- 10% 50-60Hz |
230V AC +/- 10% 50-60Hz |
230V AC +/- 10% 50-60Hz |
| Power consumption | 705 VA | 705 VA | 705 VA | 705 VA |
| Weight | 75 kg | 95 kg | 156 kg | 210 kg |
| Capacity | 1 x TA 2 or 1 x TA 3 |
1 x TA 1 or 2 x TA 2 / 3 |
2 x TA 1 or 4 x TA 2 / 3 |
3 x TA 1 or 6 x TA 2 / 3 |
| Accessories Monitoring cable TA |
1 x short | 1 x short 1 x long |
2 x short 2 x long |
3 x short 3 x long |

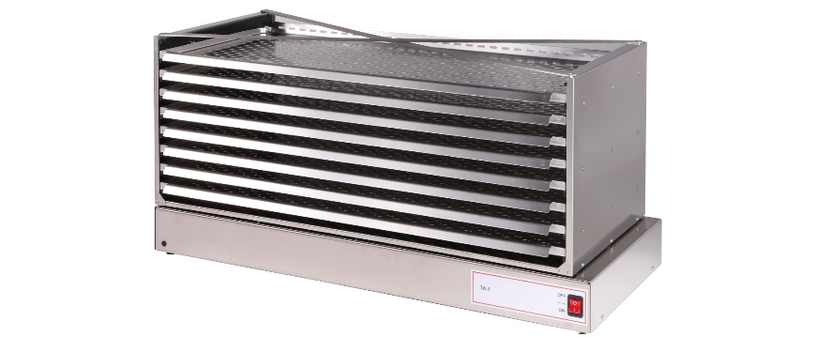

Thrombozytenagitator TA 1 / 2 / 3
- specially developed for platelet storage
- Available in 3 sizes
- Stainless steel housing
- Stainless steel insertion trays with rollers as insertion aid
- Shaking motion - Horizontal stroke 30 mm
- 60 strokes per minute, adjustable
- High quality DC- motor (Made in Germany)
- Easy cleaning due to smooth stainless steel
- Integrated motion sensor
Specifications:
| Modell | TA-1 | TA-2 | TA-3 |
| Order-no: | 600.044 | 600.045 | 600.046 |
| External dimensions WxDxH in cm |
85 x 35 x 40 | 45 x 35 x 37 | 45 x 35 x 25 |
| Number of sorage compartments |
8 | 8 | 4 |
| Bag capacity (number of bags depends on the bag size) |
96 | 48 | 24 |
| Material | Edelstahl | Edelstahl | Edelstahl |
| Motion sensor | x | x | x |
| Power supply | 230V AC +/- 10% 50-60 Hz |
230V AC +/- 10% 50-60 Hz |
230V AC +/- 10% 50-60 Hz |
| Power consumption | 50 VA | 50 VA | 50 VA |
| Weight | 39kg | 24,5 kg | 18 kg |
